Rayman Designer hacking is the process of modifying the program files of the game in order to change the appearance and the behavior of in-game events and sceneries.



In every world-folder (for example "jungle" or "music") of the game, there is a .PCX graphic file. It contains all the graphic tiles which are used by the Mapper and the levels created from it. Tiles can be changed and added, but the following should not be changed:

  • The color palette used in the file. This palette is additionally used for the background and event sprites, meaning they will change their colors too.
  • The first tile on the top-left corner, which is used to set the transparent color in the file.
  • The lowest row of tiles, which are reserved for the Mapper's "types mode".
  • The image size, otherwise the Mapper will not work.

Also note that all custom maps will use the new graphics if the standard tiles are replaced. However, the 24 levels which come with the game have built-in graphics, and are not affected by PCX changes.


All animated sprites of the game (for example, Rayman himself and enemies) are stored in the .DES files, short for dessin, French for drawing. These files are packed in the .WLD, AllFix and BigRay files, which are stored in the "pcmap" folder. The .DES files contain the image data and animation information.

ETA files, short for état, French for state, are stored in the same files. They contain information about the event states, specified by Etat and SubEtat.

The file names for the .DES and .ETA files are only included in Rayman Designer and its spin-offs. In all previous games they are only refereed to by the index they're loaded into the game.


Editing events

In every world-folder of the game, there is a file called EVE.MLT. It contains the manifest of the events of the current world and can be modified using a text editor. The events are structured in this way:




main_X_pos, main_Y_pos,

etat, sub_etat,

Offset_BX, Offset_BY, Offset_HY,

Follow_enabled, follow_sprite, hitpoints,

obj_type , hit_sprite, group,


  • œdef = defines the beginning of an event definition
  • ms_name = the internal event name. This is used to specify the event in the editor as well as to get the localized name.
  • DES_FILE = name of the graphic file which should be used for the event (without the extension ".DES")
  • display_prio = the display priority, specifying the order the sprite should be drawn on screen (a value between 1-7)
  • FILE.ETA = name of the state file which should be used
  • eventCommands = the non-compiled event commands (these have to use local offsets due to not having been compiled with label offsets yet)
  • main_X_pos = main x coordinate of the event (irrelevant since the player places the object themselves)
  • main_Y_pos = main y coordinate of the event (irrelevant since the player places the object themselves)
  • etat = the primary event state
  • sub_etat = the secondary event state
  • Offset_BX = the x position of the pivot
  • Offset_BY = the y position of the pivot
  • Offset_HY = the y coordinate of the point on the sprite on which Rayman can stand if Follow_enabled is true, relative to the follow_sprite
  • Follow_enabled = indicates whether or not Rayman can stand on this event ("follow" its movement), either 0 or 1 (true or false)
  • follow_sprite = the sprite index which the player can stand on if Follow_enabled is true
  • hitpoints = for enemies like hunters, how much resistance the event has. However, for many events this number has a different meaning, such as specifying if the sprite should appear flipped, the palette offset etc.
  • obj_type = this is the event object type. All types are hard-coded in the engine and specifies how the event should be treated.
  • hit_sprite = if below 253 it specifies the sprite which is treated as a hitbox. If above 253 it specifies the event uses the hitbox belonging to the obj_type.
  • group = in which group the event can be found in the Events Editor. For example, the "Enemies" group is group 5.

Event commands

The event commands will repeat themselves when they come to the end. Ones marked as self-handled will have different behavior depending on the object type and current state. The command names come from leftover debug information in the GameBoy Advance version. The complete list is as follows:

Command Name Effect
0, {arg1} GO_LEFT (Self-handled) Object moves left
1, {arg1} GO_RIGHT (Self-handled) Object moves right
2 GO_WAIT (Self-handled) Object stops moving
3, {arg1} GO_UP (Self-handled) Sprite moves up
4, {arg1} GO_DOWN (Self-handled) Sprite moves down
5, {arg1} GO_SUBSTATE Set object SubEtat (secondary state) to {arg1}
6, {arg1} GO_SKIP Skips {arg1} commands
7 GO_ADD (Self-handled) ?
8, {arg1} GO_STATE Set object Etat (primary state) to {arg1}
9, {arg1} GO_PREPARELOOP Saves the current position and prepares a loop which loops with {arg1} being the amount of times to loop
10 GO_DOLOOP Perform the loop
11, {arg1} GO_LABEL Sets label {arg1}
12, {arg1} GO_GOTO Skips to label {arg1}
13, {arg1} GO_GOSUB Saves the current position and starts executing from label {arg1} until GO_RETURN
14 GO_RETURN Returns from a GOSUB command execution
15, {arg1} GO_BRANCHTRUE Skips to label {arg1} if TEST is true
16, {arg1} GO_BRANCHFALSE Skips to label {arg1} if TEST is false
17, {arg1}[, {arg2}] GO_TEST Sets the TEST flag depending on {arg1}. If {arg1} <= 4 then {arg2} is used in the validation, otherwise only one argument is expected.
18, {arg1} GO_SETTEST Sets the TEST flag to {arg1}, treated as a boolean
19, {arg1} GO_WAITSTATE Waits {arg1}
20, {arg1}, {arg2}, {arg3} GO_SPEED (Self-handled) Moves {arg1} with speed X {arg2} and Y {arg3}
21, {arg1}, {arg2} GO_X Sets the X position to {arg1}{arg2}
22, {arg1}, {arg2} GO_Y Sets the Y position to {arg1}{arg2}
23, {arg1} RESERVED_GO_SKIP Skips to LabelOffsets[{arg1}]
25, {arg1} RESERVED_GO_GOSUB Saves the current position and starts executing from LabelOffsets[{arg1}] until GO_RETURN
26, {arg1} RESERVED_GO_GOTOT Skips to LabelOffsets[{arg1}] if TEST is true
27, {arg1} RESERVED_GO_GOTOF Skips to LabelOffsets[{arg1}] if TEST is false
30 GO_NOP (Self-handled) ?
31, {arg1} GO_SKIPTRUE Skips {arg1} commands if TEST is true
32, {arg1} GO_SKIPFALSE Skips {arg1} commands if TEST is false
33, {arg1} INVALID_CMD Terminates the commands and loops back, {arg1} is always 0xFF which is used as the command buffer terminator

Unused events

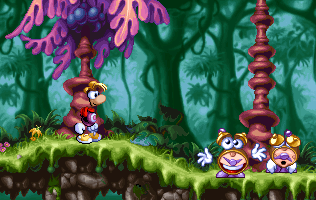

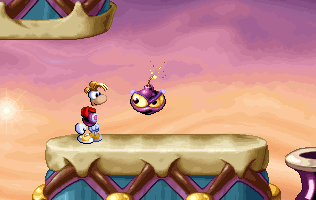

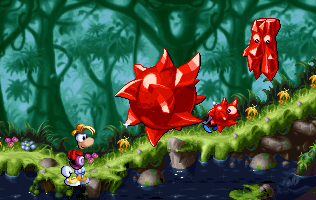

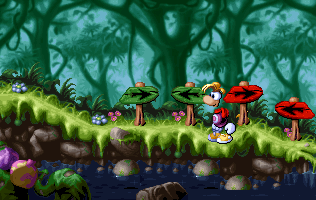

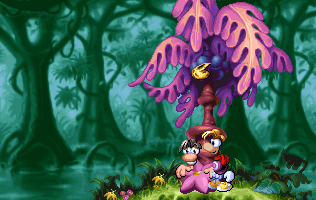

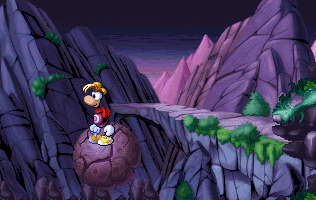

A bunch of unused events have been discovered. They can be added to the game by adding their code to the EVE.MLT file. A lot of these events are taken from the original game, such as a fully functioning Tarayzan and an unstable version of Rayman riding Bzzit. A lot of other events are however not used in the original game, although many can still be found in its files.

Map properties

For each created map there's an configuration file, named MAP.INI with the basic map properties. Example:







Most values here can simply be changed using the Mapper program. However, the Mapper program only gives two options for the background and music, while in fact there are usually several ones which can be used. Setting the track to 3 will play the bonus level music.

The Extended Rayman Designer Editor

This is an unofficial tool that makes Rayman Designer modding much easier. It also comes with a large content package which includes a great deal of content from Rayman and Rayman Junior that was not available in Rayman Designer, and also some new unofficial content.


Through some editing of the game, the following things have been discovered:

  • If events are placed in groups beyond group 9, it is found that these groups have the same names as the game's levels. This reveals the names of six additional levels. It seems that they have been cut from the final game (or never been finished): "The Gates of the Jungle" (The Dream Forest), "Diabolical Tunes" (Band Land), "The Fire Avalanche" (The Blue Mountains), "Miniature Madness" (Picture City), "Cloud of Doom" (The Caves of Skops) and "Dessert Anyone?" (Candy Château).
  • The spritefiles also contain a considerable amount of content from the Rayman Junior (such as the world map icons) and some never-before-seen sprites.
